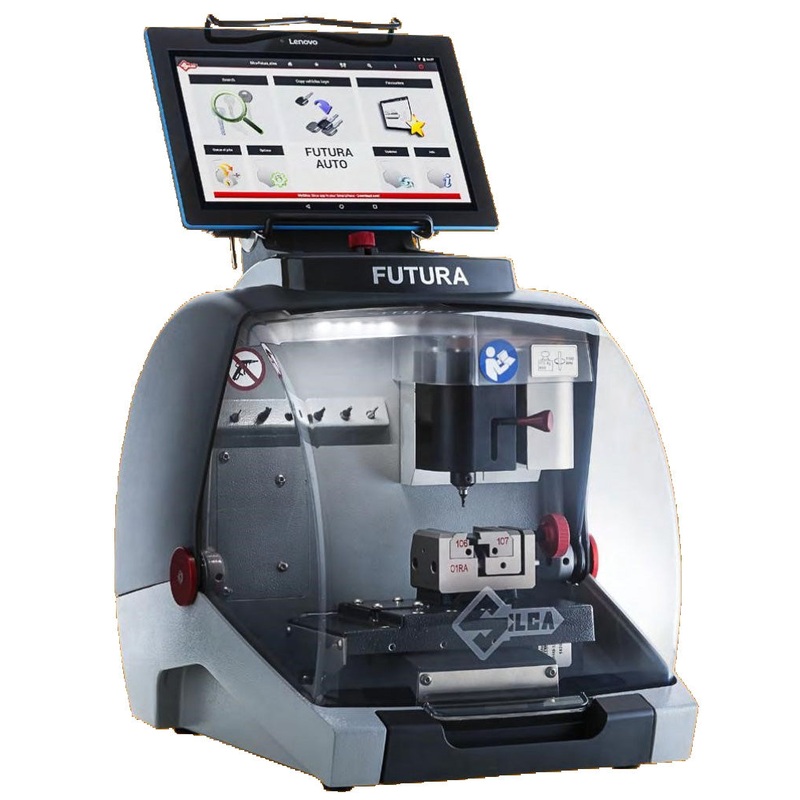

Futura Auto
Electronic Key Cutting Machine

The electronic key cutting machine with one cuttingstation and two interchangeable clamps for duplicatingand originating all types of automotive keys, includingheavy trucks and motorcycles. Additional keys usedfor gas cap locks, glove boxes and roof racks are alsoincluded in the database.

Controlled by a removable 10 (254mm) touch-screentablet, the Futura Auto guides the user step-by-step inall key cutting operations making it the perfect machinefor those just getting into the automotive locksmithbusiness or the seasoned professionals offeringroadside services.

Work Efficiencies

• User friendly software with step-by-step instructions
• Fast key search simply enter Make/Model/Year andthe software guides you through the process
• Details include a cutter holder, tool/accessory holderon top of the machine
• The color-changing LED lights help the operator toimmediately see the process status:
• white machine is ready to proceed
• yellow machine is in the process of cutting the key,
• green key cutting is complete, and it is safe to raisethe safety shield
• Wi-Fi link between machine and tablet or the user cantether the tablet directly to the machine
• Equipped with two USB ports on the back of themachine; one for tablet recharge and one forthe tethering connection so the machine and tabletremain connected and operational even when theWi-Fi connection is lost or unstable. The secondUSB port can also be used to connect the suppliedUSB flash drive to import code tables or machinesoftware updates.
• Step-by-step instructions for updating machinesoftware
• Software Interface with Instacode and Kreate-AKey

Edge-Cut Automotive Keys

• 01VA four-sided clamp with easy rotation system
• Software indicates which of the four jaws to use foreach key reference to minimize vibration andmaximize quality of cut (keys are gripped on themilling groove to provide stability when cutting two-sidedsymmetrical keys)
• Automatic detection of the key blank edge
• Large flip-up gauge for perfectly aligning keys in the jaw
• Decoding by electrical contact
• Partial cuts function for broken keys, allows you todecode a portion of the key or enter the known cutsand create a cutting tree to minimize the numberof keys needed to create a working key

Laser Automotive Keys

• 01RA clamp secures laser keys on the neck ofthe blade eliminating the need for special jaws oradapters
• Automatic tip detection for tip gauged keys
• Decoding by electrical contact
• Key-cut preview
• Software indicates which of the three cuttersprovided you should use to optimize thecutting cycle of a laser key allowing you tomaximize cut quality and minimize cutter wear

Ease of Operation

• Generous sized working area, easily accessible and always clean thanks to the swarf collection system and the pull-downprotective screen
• Shortcut function for vehicle key cutting code searches. Just input the first letters and the software will prompt the makeand model your looking for, so you dont have to manually enter the entire field.
• Multi-language support

Compact and Lightweight

• Compact, lightweight and portable with ergonomic grip for easy lifting
• Safety shield slides within the machine body making it perfect for small shops and vans
• Removable tablet stand can be locked onto the hood of the machine or placed on the counter

Safety Features

• Transparent safety shield contains chips and isolates moving parts
• All operations are disabled immediately when safety cover is retracted
• Large emergency stop button on side of machine

Technical Data

Standard Parts / Accessories

Compare All The Futura Series
