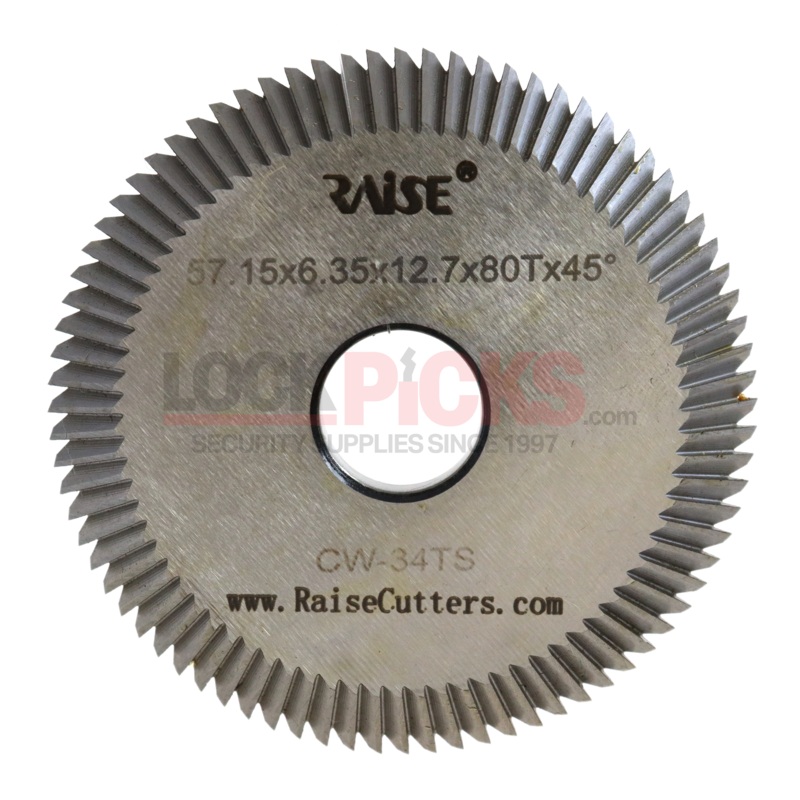

34MC (23RF/CW-34TS/CU1/CU5) HSS Cutter for Ilco – by Raise
DiameterThicknessHole DiameterProfile / AngleItem No.TypeMaterialInchmmInchmmInchmmABF In.mm34MCMillingH.S.S.2.2557.15.256.35.512.7045.031R.787RAISE High Quality CuttersThis cutter can be used on the following machines:Ilco 008, 008A, 008B, 2184CD, 2584CV,
Category: Locksmithing & Automotive Security Tools
| Diameter | Thickness | Hole Diameter | Profile / Angle | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item No. | Type | Material | Inch | mm | Inch | mm | Inch | mm | A | B | F In. | mm |
| 34MC | Milling | H.S.S. | 2.25 | 57.15 | .25 | 6.35 | .5 | 12.7 | 0 | 45 | .031R | .787 |
RAISE High Quality Cutters
This cutter can be used on the following machines:
- Ilco 008, 008A, 008B, 2184CD, 2584CV, 2585DU, 2585DU
- HPC 9100, 9110
- Keil 4-1/2, 12-1/2, 13-1/2, 15, 15-1/2
- Cole 1000, 3000, 3K, 5000
- Dominion 147M, 149M
- ESP 660, 990, 1000, 3000, 5000
This cutter is able to substitute for the following cutters:
- 23RF
- CW-34TS
- CU1
- CU5
